| Label | Region | Length (bp) | Pi | Alignment reliability | MarkerSeek score | Primer available | Action |
|---|---|---|---|---|---|---|---|
| rps16 | LSC | 1205 | 0.0169 | 1.00 | 57.8 | yes | View details |
| atpF-atpH | LSC | 584 | 0.0268 | 1.00 | 77.2 | yes | View details |
| atpH-atpI | LSC | 995 | 0.0206 | 0.98 | 76.2 | yes | View details |
| psbZ-trnG-UCC | LSC | 665 | 0.0278 | 0.94 | 70.9 | yes | View details |
| ndhC-trnV-UAC | LSC | 564 | 0.0250 | 0.99 | 63.9 | yes | View details |
| atpB-rbcL | LSC | 786 | 0.0233 | 0.98 | 67.1 | yes | View details |
| accD-psaI | LSC | 518 | 0.0341 | 1.00 | 69.5 | yes | View details |
| petA-psbJ | LSC | 860 | 0.0239 | 0.96 | 64.3 | yes | View details |
| rps3-rps19 | LSC | 701 | 0.0407 | 0.98 | 79.3 | yes | View details |
| ndhF | SSC | 2232 | 0.0114 | 0.99 | 50.1 | yes | View details |
| rpl32-trnL-UAG | SSC | 1315 | 0.0228 | 0.98 | 65.0 | yes | View details |
| trnN-GUU-trnR-ACG | IRa | 639 | 0.0245 | 1.00 | 75.9 | yes | View details |
| rrn4.5S-rrn5S | IRb | 223 | 0.0508 | 1.00 | 80.9 | yes | View details |
| rrn5S-rrn4.5S | IRa | 223 | 0.0508 | 1.00 | 80.9 | yes | View details |
| trnR-ACG-trnN-GUU | IRb | 639 | 0.0245 | 1.00 | 76.1 | yes | View details |
| ccsA-ndhD | SSC | 298 | 0.0327 | 0.92 | 75.3 | yes | View details |
| trnG-UCC-trnfM-CAU | LSC | 173 | 0.0529 | 0.84 | 74.2 | yes | View details |
| rps4-trnT-UGU | LSC | 426 | 0.0269 | 0.96 | 71.1 | yes | View details |
| trnR-UCU-atpA | LSC | 437 | 0.0278 | 0.96 | 70.6 | yes | View details |
| ndhD-psaC | SSC | 127 | 0.0210 | 1.00 | 70.5 | yes | View details |
| rps19-trnH-GUG | LSC | 10 | 0.0667 | 1.00 | 68.2 | no | View details |
| trnH-GUG-psbA | LSC | 372 | 0.0305 | 1.00 | 67.5 | yes | View details |
| Candidate markers include all hotspot labels marked in the diversity plot, listed in genomic order, plus the top 10 remaining regions by MarkerSeek score. Primer design is attempted for every listed region. Primer available: yes means at least one valid primer pair was found; no means no valid pair passed screening; NA means primer design was skipped. | |||||||
Species
3
Genome length
159–160 kb
Candidate markers
268
Primer pairs
105

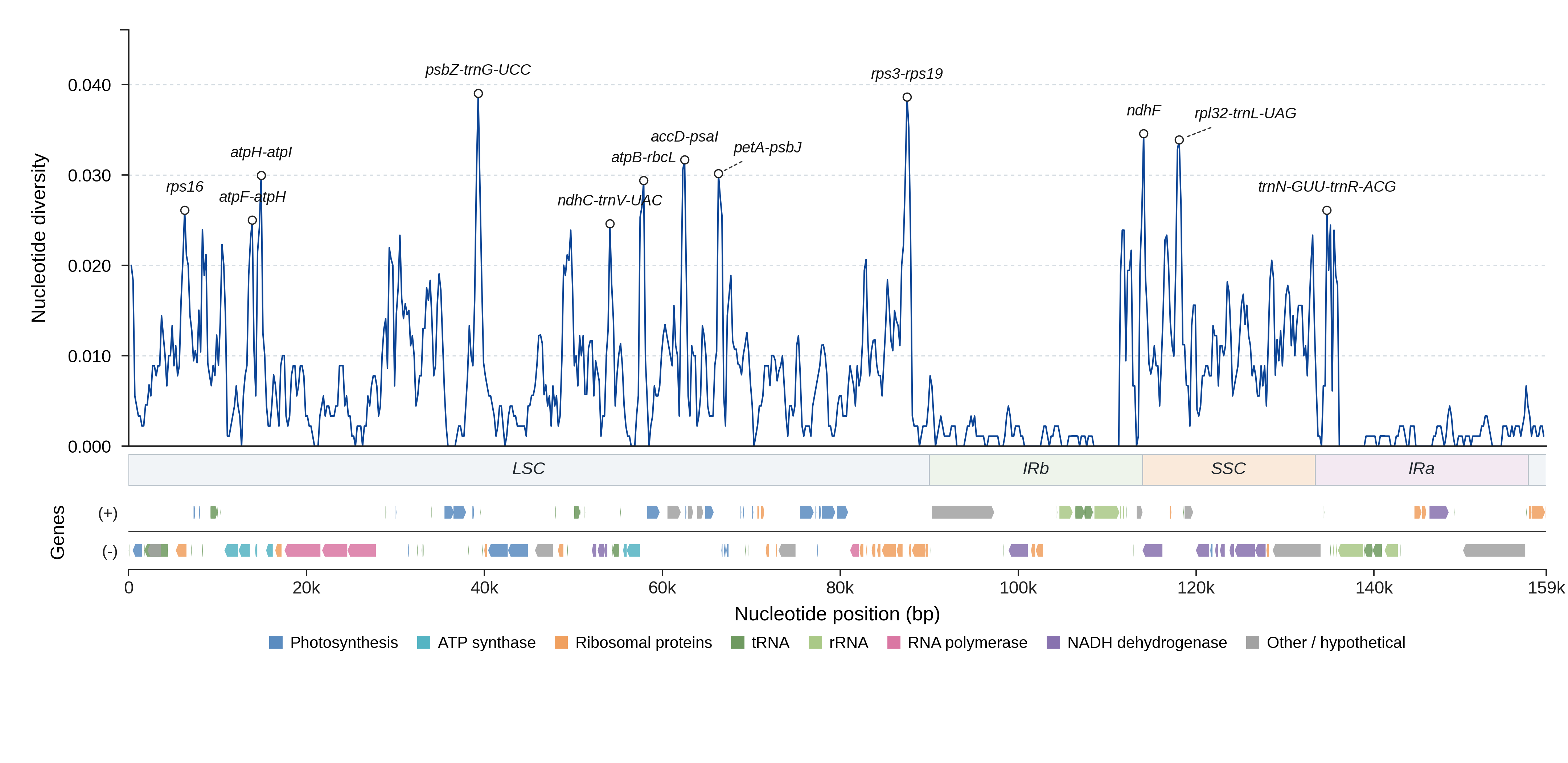

Genome-wide nucleotide diversity
Candidate markers
12 hotspot labels from the diversity plot in genomic order, plus the top 10 remaining regions by MarkerSeek score (out of 268 candidates).
Primer pairs
Showing the top 30 of 105 primer pairs (ranked by primer score).
| Primer ID | Label | Forward | Reverse | Amplicon (bp) | Cross-species rate | Score |
|---|---|---|---|---|---|---|
| trnH-GUG-psbA_p1 | trnH-GUG-psbA | GATCCACTTGGCTACATCCG |
CCTCTAGACCTAGCTGCCAT |
353–446 | 1.000 | 86.0 |
| trnH-GUG-psbA_p2 | trnH-GUG-psbA | CAATCCACTGCCTTGATCCA |
CCTCTAGACCTAGCTGCCAT |
367–460 | 1.000 | 85.9 |
| trnH-GUG-psbA_p3 | trnH-GUG-psbA | AATCCACTGCCTTGATCCAC |
CCTCTAGACCTAGCTGCCAT |
366–459 | 1.000 | 85.9 |
| trnH-GUG-psbA_p4 | trnH-GUG-psbA | ACAATCCACTGCCTTGATCC |
CCTCTAGACCTAGCTGCCAT |
368–461 | 1.000 | 85.8 |
| trnH-GUG-psbA_p5 | trnH-GUG-psbA | GATCCACTTGGCTACATCCG |
TTCCCTCTAGACCTAGCTGC |
356–449 | 1.000 | 85.5 |
| rps16_p1 | rps16 | TCCACACCCTCTTTTGTTTCT |
TGGCTGCAAACCAGAGAAAT |
1242–1256 | 1.000 | 69.4 |
| rps16_p2 | rps16 | TCCACACCCTCTTTTGTTTCT |
GGCTGCAAACCAGAGAAATG |
1241–1255 | 1.000 | 66.6 |
| rps16_p3 | rps16 | TCCACACCCTCTTTTGTTTCTT |
TGGCTGCAAACCAGAGAAAT |
1242–1256 | 1.000 | 66.6 |
| rps16_p4 | rps16 | ATCCACACCCTCTTTTGTTTCT |
TGGCTGCAAACCAGAGAAAT |
1243–1257 | 1.000 | 65.3 |
| rps16_p5 | rps16 | TCCACACCCTCTTTTGTTTC |
TGGCTGCAAACCAGAGAAAT |
1242–1256 | 1.000 | 65.0 |
| trnR-UCU-atpA_p1 | trnR-UCU-atpA | GGTTCAAATCCTATTGGACGC |
CATTTACCGGGGAAGCAGAA |
536–551 | 1.000 | 70.5 |
| trnR-UCU-atpA_p2 | trnR-UCU-atpA | GGTTCAAATCCTATTGGACGC |
AAGACATTTACCGGGGAAGC |
540–555 | 1.000 | 70.4 |
| trnR-UCU-atpA_p3 | trnR-UCU-atpA | GGTTCAAATCCTATTGGACGC |
GGAAGCAGAAGCCCTTTTGA |
526–541 | 1.000 | 68.5 |
| trnR-UCU-atpA_p4 | trnR-UCU-atpA | GGTTCAAATCCTATTGGACGC |
ATTTACCGGGGAAGCAGAAG |
535–550 | 1.000 | 68.1 |
| trnR-UCU-atpA_p5 | trnR-UCU-atpA | TGGATAGGACAGAGGTCTTCT |
CATTTACCGGGGAAGCAGAA |
571–586 | 1.000 | 67.3 |
| atpF-atpH_p1 | atpF-atpH | TTAAACCCGAAACTCCCAGC |
AGGCAGAGGGAAAAATACGG |
768–780 | 1.000 | 79.1 |
| atpF-atpH_p2 | atpF-atpH | CGTATGGCCAGTAACCCAAA |
AGGCAGAGGGAAAAATACGG |
749–761 | 1.000 | 79.1 |
| atpF-atpH_p3 | atpF-atpH | TTAAACCCGAAACTCCCAGC |
CCTGAGGCAGAGGGAAAAAT |
772–784 | 1.000 | 78.3 |
| atpF-atpH_p4 | atpF-atpH | CGTATGGCCAGTAACCCAAA |
CCTGAGGCAGAGGGAAAAAT |
753–765 | 1.000 | 78.3 |
| atpF-atpH_p5 | atpF-atpH | TTAAACCCGAAACTCCCAGC |
GCAGAGGGAAAAATACGGGG |
766–778 | 1.000 | 77.6 |
| atpH-atpI_p1 | atpH-atpI | AATAGAAGCAAGCCCGACAG |
TTTTGCAACTTTAGCTGCGG |
1054–1127 | 1.000 | 84.8 |
| atpH-atpI_p2 | atpH-atpI | ATAACGGAAGCGGCAGAAAT |
TTTTGCAACTTTAGCTGCGG |
1020–1093 | 1.000 | 84.8 |
| atpH-atpI_p3 | atpH-atpI | AATAGAAGCAAGCCCGACAG |
TCCCTGTCATGTTCCTTGGA |
1103–1176 | 1.000 | 83.7 |
| atpH-atpI_p4 | atpH-atpI | ATAACGGAAGCGGCAGAAAT |
TCCCTGTCATGTTCCTTGGA |
1069–1142 | 1.000 | 83.7 |
| atpH-atpI_p5 | atpH-atpI | AATAACGGAAGCGGCAGAAA |
TTTTGCAACTTTAGCTGCGG |
1021–1094 | 1.000 | 83.6 |
| psbZ-trnG-UCC_p1 | psbZ-trnG-UCC | CTTCTCCTGATGGTTGGTCG |
CGTCTTCTCCTTGGCAAAGA |
797–877 | 1.000 | 85.0 |
| psbZ-trnG-UCC_p2 | psbZ-trnG-UCC | TTGCTTCTCCTGATGGTTGG |
CGTCTTCTCCTTGGCAAAGA |
800–880 | 1.000 | 83.5 |
| psbZ-trnG-UCC_p3 | psbZ-trnG-UCC | TCCTGATGGTTGGTCGAGTA |
CGTCTTCTCCTTGGCAAAGA |
793–873 | 1.000 | 83.4 |
| psbZ-trnG-UCC_p4 | psbZ-trnG-UCC | CTTCTCCTGATGGTTGGTCG |
GGATAGCGGGAATTGAACCC |
818–898 | 1.000 | 83.2 |
| psbZ-trnG-UCC_p5 | psbZ-trnG-UCC | GCTTCTCCTGATGGTTGGTC |
CGTCTTCTCCTTGGCAAAGA |
798–878 | 1.000 | 83.1 |
Result downloads
Reference species (3)
One GenBank record per species. Use the NCBI button to open the Nucleotide entry for the listed accession.
| Species | Accession | Length (bp) | Link |
|---|---|---|---|
| Gilbertiodendron brachystegioides | MZ274098.1 | 159370 | View on NCBI ↗ |
| Gilbertiodendron dewevrei | MZ274099.1 | 159979 | View on NCBI ↗ |
| Gilbertiodendron preussii | MZ274100.1 | 158516 | View on NCBI ↗ |
